FORJ de canal único
Produtos
Especificações
| Model | Fiber Type | Insertion Loss | Maxium Rotation Speed | Operating Temperature | Size: Minimum Length in (mm) | Size: Flange Diameter in (mm) | Size: Drum Diameter in (mm) |
| FO197 | Multimode | 3.0 dB | 1000 rpm | -40 to +60 °C | 2.38 (60.45) | 1.50 (38.10) | 0.62 (15.74) |
| FO197S | Multimode | 3.0 dB | 100 rpm | -40° to +85°C | 2.38 (60.6) | 1.50 (38.10) | 0.62 (15.9) |

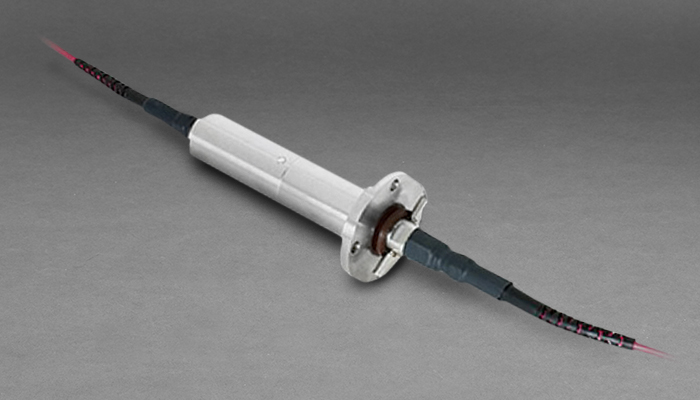

| FO206 | Singlemode | 3.5 dB | 1000 rpm | -40 to +60 °C | 2.36 (59.94) | 1.50 (38.10) | 0.77 (19.55) |

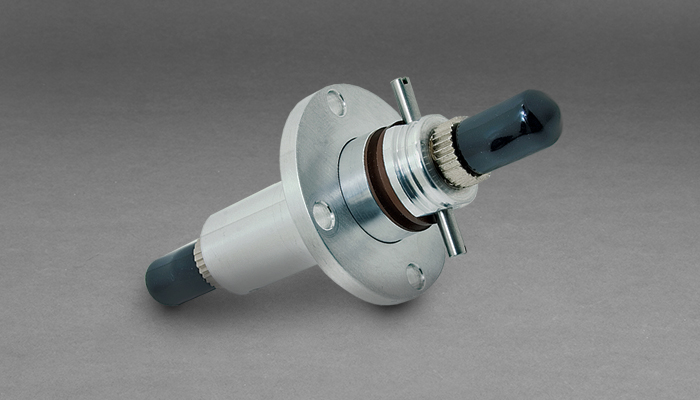

| FO228 | Multimode | 4.0 dB | 100 rpm | -40 to +75 °C | 1.75 (44.45) | 1.50 (38.10) | 0.73 (18.54) |
| FO285 | Singlemode | 3.5 dB | 1000 rpm | -55 to +75 °C | 1.02 (25.90) | 0.75 (19.05) | 0.37 (9.4) |
| FO286 | Multimode | 2.5 dB | 1000 rpm | -55 to +75 °C | 0.75 (19.05) | 0.75 (19.05) | 0.37 (9.4) |

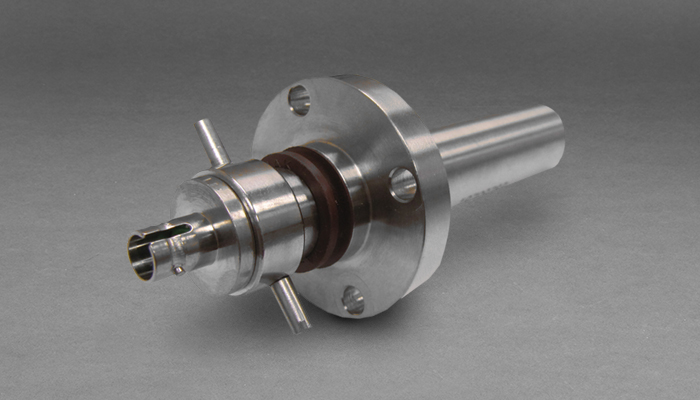

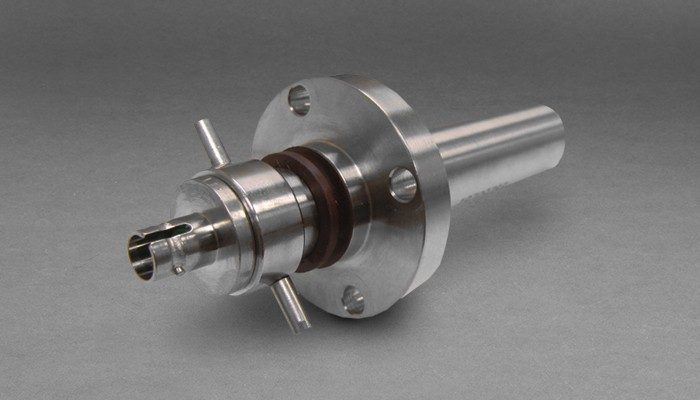

| FO310 | Singlemode and Multimode | 1.5 dB | 100 rpm | -40 to +85°C | 3.41 (86.6) | 1.50 (38.1) | 0.63 (15.9) |
